Basic image handling

Duration ~45 min  ·  Session Day 1, Python notebooks

This notebook covers

• what an image is to a computer, and how to read its shape and data type

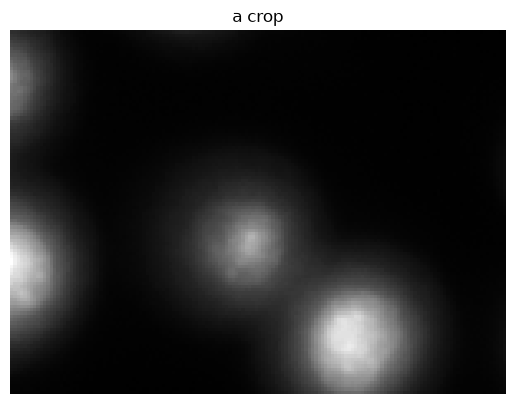

• cropping, slicing and indexing, the same way a list is indexed

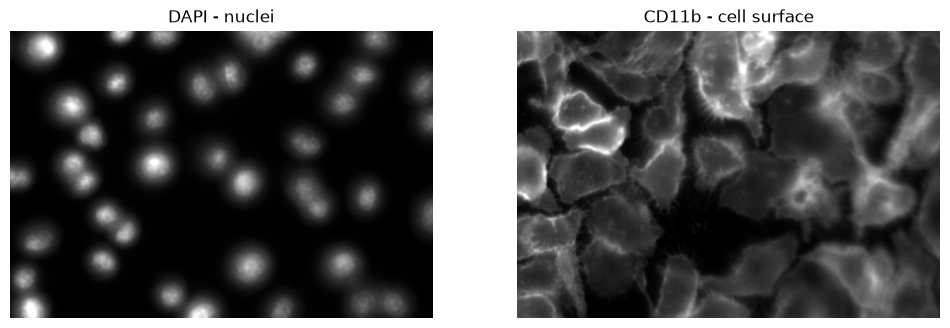

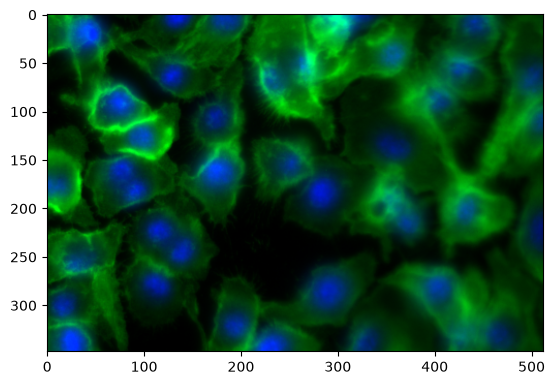

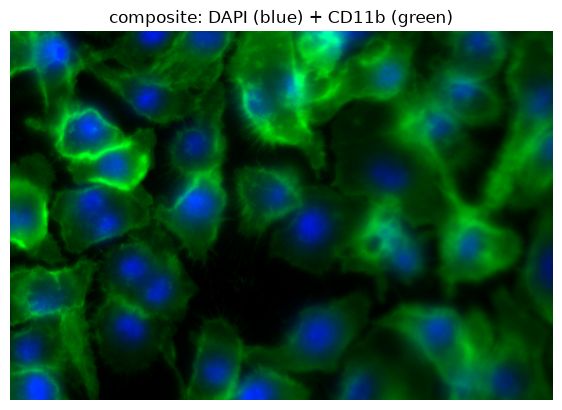

• displaying images and channels, and building a composite

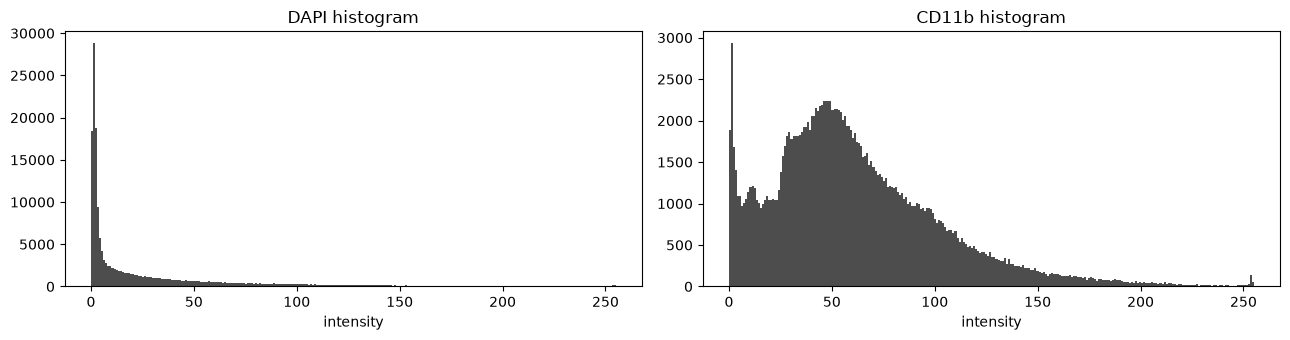

• reading a histogram, and using it to choose a threshold

• interactive visualization in the notebook and in napari

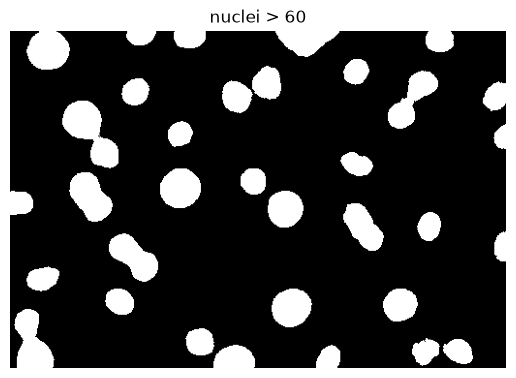

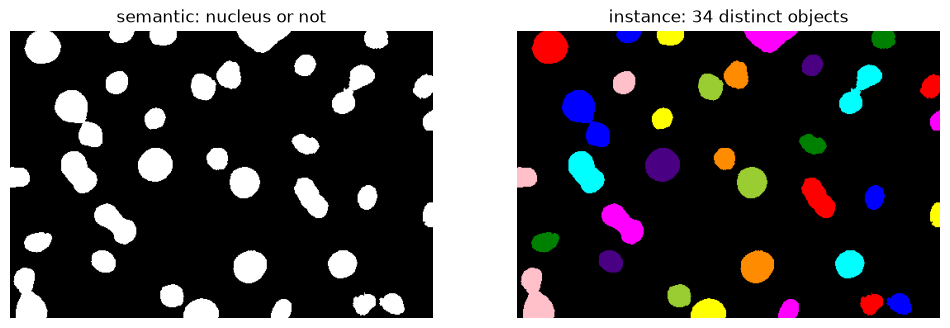

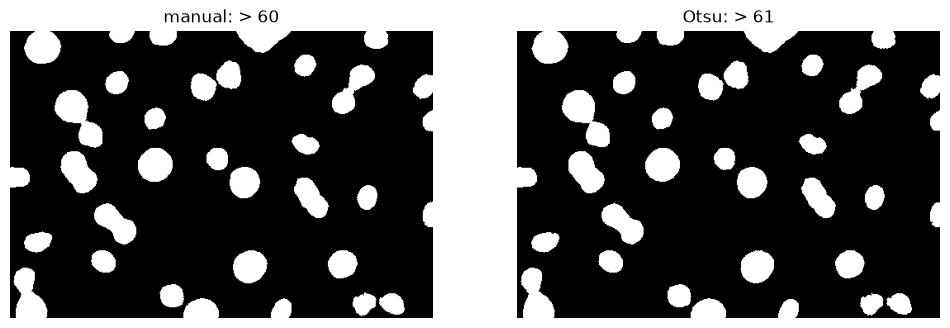

• turning an image into a binary image, and a binary image into counted objects

Data: data/bbbc020/ field 2h_1: mouse bone-marrow macrophages, two channels. DAPI stains nuclei; CD11b stains the cell surface. These are the same images segmented in the Fiji practical.

1. An image is an array of numbers

Key properties of a NumPy array:

Property	Meaning	Example
.shape	Dimensions (rows, cols, …)	(5, 5)
.dtype	Data type of elements	int64, uint8, float64
.ndim	Number of dimensions	2
.min(), .max()	Value range	0, 255

import numpy as np
import tifffile
import os; os.environ["DISPLAY"] = ":1"

from course import DATA, show

# The same field you worked on in Fiji.
nuclei = tifffile.imread(DATA / "bbbc020" / "images" / "2h_1_nuclei.tif")

print("type :", type(nuclei))
print("shape:", nuclei.shape)
print("dtype:", nuclei.dtype)
print("range:", nuclei.min(), "to", nuclei.max())

type : <class 'numpy.ndarray'>
shape: (348, 512)
dtype: uint8
range: 0 to 255

Three things to take from that output.

shape is (rows, columns): 348 rows by 512 columns. Note the order: height first, then width. This trips up nearly everyone at least once, because Fiji’s status bar reports it the other way round, as width × height.

dtype is uint8: an unsigned 8-bit integer, so every pixel is a whole number from 0 to 255. This is the “8-bit” shown in Fiji’s Image ▸ Type menu. A 16-bit image (uint16) would run 0–65535.

The image is just a NumPy array. There is no special image object, so everything that holds for arrays holds here, and everything in this notebook transfers to any other numerical data.

# A pixel is one number. Row 187, column 234 lands on background:
print("background pixel (187, 234):", nuclei[187, 234])

# ...and this one lands inside a nucleus.
print("nucleus pixel   (336, 25):", nuclei[336, 25])

background pixel (187, 234): 2
nucleus pixel   (336, 25): 255

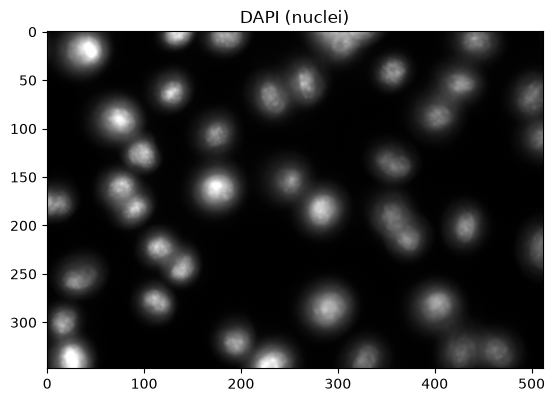

2. Visualizing an image

Within the notebook

The simplest way to look at an image is to use matplotlib.pyplot.imshow().

import matplotlib.pyplot as plt

# let's have a look at the `imshow` function to see what arguments it takes
plt.imshow?

Signature:
plt.imshow(
    X: 'ArrayLike | PIL.Image.Image',
    cmap: 'str | Colormap | None' = None,
    norm: 'str | Normalize | None' = None,
    *,
    aspect: "Literal['equal', 'auto'] | float | None" = None,
    interpolation: 'str | None' = None,
    alpha: 'float | ArrayLike | None' = None,
    vmin: 'float | None' = None,
    vmax: 'float | None' = None,
    colorizer: 'Colorizer | None' = None,
    origin: "Literal['upper', 'lower'] | None" = None,
    extent: 'tuple[float, float, float, float] | None' = None,
    interpolation_stage: "Literal['data', 'rgba', 'auto'] | None" = None,
    filternorm: 'bool' = True,
    filterrad: 'float' = 4.0,
    resample: 'bool | None' = None,
    url: 'str | None' = None,
    data: 'DataParamType' = None,
    **kwargs,
) -> 'AxesImage'
Docstring:
Display data as an image, i.e., on a 2D regular raster.

The input may either be actual RGB(A) data, or 2D scalar data, which
will be rendered as a pseudocolor image. For displaying a grayscale
image, set up the colormapping using the parameters
``cmap='gray', vmin=0, vmax=255``.

The number of pixels used to render an image is set by the Axes size
and the figure *dpi*. This can lead to aliasing artifacts when
the image is resampled, because the displayed image size will usually
not match the size of *X* (see
:doc:`/gallery/images_contours_and_fields/image_antialiasing`).
The resampling can be controlled via the *interpolation* parameter
and/or :rc:`image.interpolation`.

Parameters
----------
X : array-like or PIL image
    The image data. Supported array shapes are:

    - (M, N): an image with scalar data. The values are mapped to
      colors using normalization and a colormap. See parameters *norm*,
      *cmap*, *vmin*, *vmax*.
    - (M, N, 3): an image with RGB values (0-1 float or 0-255 int).
    - (M, N, 4): an image with RGBA values (0-1 float or 0-255 int),
      i.e. including transparency.

    The first two dimensions (M, N) define the rows and columns of
    the image.

    Out-of-range RGB(A) values are clipped.

cmap : str or `~matplotlib.colors.Colormap`, default: :rc:`image.cmap`
    The Colormap instance or registered colormap name used to map scalar data
    to colors.

    This parameter is ignored if *X* is RGB(A).

norm : str or `~matplotlib.colors.Normalize`, optional
    The normalization method used to scale scalar data to the [0, 1] range
    before mapping to colors using *cmap*. By default, a linear scaling is
    used, mapping the lowest value to 0 and the highest to 1.

    If given, this can be one of the following:

    - An instance of `.Normalize` or one of its subclasses
      (see :ref:`colormapnorms`).
    - A scale name, i.e. one of "linear", "log", "symlog", "logit", etc.  For a
      list of available scales, call `matplotlib.scale.get_scale_names()`.
      In that case, a suitable `.Normalize` subclass is dynamically generated
      and instantiated.

    This parameter is ignored if *X* is RGB(A).

vmin, vmax : float, optional
    When using scalar data and no explicit *norm*, *vmin* and *vmax* define
    the data range that the colormap covers. By default, the colormap covers
    the complete value range of the supplied data. It is an error to use
    *vmin*/*vmax* when a *norm* instance is given (but using a `str` *norm*
    name together with *vmin*/*vmax* is acceptable).

    This parameter is ignored if *X* is RGB(A).

colorizer : `~matplotlib.colorizer.Colorizer` or None, default: None
    The Colorizer object used to map color to data. If None, a Colorizer
    object is created from a *norm* and *cmap*.

    This parameter is ignored if *X* is RGB(A).

aspect : {'equal', 'auto'} or float or None, default: None
    The aspect ratio of the Axes.  This parameter is particularly
    relevant for images since it determines whether data pixels are
    square.

    This parameter is a shortcut for explicitly calling
    `.Axes.set_aspect`. See there for further details.

    - 'equal': Ensures an aspect ratio of 1. Pixels will be square
      (unless pixel sizes are explicitly made non-square in data
      coordinates using *extent*).
    - 'auto': The Axes is kept fixed and the aspect is adjusted so
      that the data fit in the Axes. In general, this will result in
      non-square pixels.

    Normally, None (the default) means to use :rc:`image.aspect`.  However, if
    the image uses a transform that does not contain the axes data transform,
    then None means to not modify the axes aspect at all (in that case, directly
    call `.Axes.set_aspect` if desired).

interpolation : str, default: :rc:`image.interpolation`
    The interpolation method used.

    Supported values are 'none', 'auto', 'nearest', 'bilinear',
    'bicubic', 'spline16', 'spline36', 'hanning', 'hamming', 'hermite',
    'kaiser', 'quadric', 'catrom', 'gaussian', 'bessel', 'mitchell',
    'sinc', 'lanczos', 'blackman'.

    The data *X* is resampled to the pixel size of the image on the
    figure canvas, using the interpolation method to either up- or
    downsample the data.

    If *interpolation* is 'none', then for the ps, pdf, and svg
    backends no down- or upsampling occurs, and the image data is
    passed to the backend as a native image.  Note that different ps,
    pdf, and svg viewers may display these raw pixels differently. On
    other backends, 'none' is the same as 'nearest'.

    If *interpolation* is the default 'auto', then 'nearest'
    interpolation is used if the image is upsampled by more than a
    factor of three (i.e. the number of display pixels is at least
    three times the size of the data array).  If the upsampling rate is
    smaller than 3, or the image is downsampled, then 'hanning'
    interpolation is used to act as an anti-aliasing filter, unless the
    image happens to be upsampled by exactly a factor of two or one.

    See
    :doc:`/gallery/images_contours_and_fields/interpolation_methods`
    for an overview of the supported interpolation methods, and
    :doc:`/gallery/images_contours_and_fields/image_antialiasing` for
    a discussion of image antialiasing.

    Some interpolation methods require an additional radius parameter,
    which can be set by *filterrad*. Additionally, the antigrain image
    resize filter is controlled by the parameter *filternorm*.

interpolation_stage : {'auto', 'data', 'rgba'}, default: 'auto'
    Supported values:

    - 'data': Interpolation is carried out on the data provided by the user
      This is useful if interpolating between pixels during upsampling.
    - 'rgba': The interpolation is carried out in RGBA-space after the
      color-mapping has been applied. This is useful if downsampling and
      combining pixels visually.
    - 'auto': Select a suitable interpolation stage automatically. This uses
      'rgba' when downsampling, or upsampling at a rate less than 3, and
      'data' when upsampling at a higher rate.

    See :doc:`/gallery/images_contours_and_fields/image_antialiasing` for
    a discussion of image antialiasing.

alpha : float or array-like, optional
    The alpha blending value, between 0 (transparent) and 1 (opaque).
    If *alpha* is an array, the alpha blending values are applied pixel
    by pixel, and *alpha* must have the same shape as *X*.

origin : {'upper', 'lower'}, default: :rc:`image.origin`
    Place the [0, 0] index of the array in the upper left or lower
    left corner of the Axes. The convention (the default) 'upper' is
    typically used for matrices and images.

    Note that the vertical axis points upward for 'lower'
    but downward for 'upper'.

    See the :ref:`imshow_extent` tutorial for
    examples and a more detailed description.

extent : floats (left, right, bottom, top), optional
    The bounding box in data coordinates that the image will fill.
    These values may be unitful and match the units of the Axes.
    The image is stretched individually along x and y to fill the box.

    The default extent is determined by the following conditions.
    Pixels have unit size in data coordinates. Their centers are on
    integer coordinates, and their center coordinates range from 0 to
    columns-1 horizontally and from 0 to rows-1 vertically.

    Note that the direction of the vertical axis and thus the default
    values for top and bottom depend on *origin*:

    - For ``origin == 'upper'`` the default is
      ``(-0.5, numcols-0.5, numrows-0.5, -0.5)``.
    - For ``origin == 'lower'`` the default is
      ``(-0.5, numcols-0.5, -0.5, numrows-0.5)``.

    See the :ref:`imshow_extent` tutorial for
    examples and a more detailed description.

filternorm : bool, default: True
    A parameter for the antigrain image resize filter (see the
    antigrain documentation).  If *filternorm* is set, the filter
    normalizes integer values and corrects the rounding errors. It
    doesn't do anything with the source floating point values, it
    corrects only integers according to the rule of 1.0 which means
    that any sum of pixel weights must be equal to 1.0.  So, the
    filter function must produce a graph of the proper shape.

filterrad : float > 0, default: 4.0
    The filter radius for filters that have a radius parameter, i.e.
    when interpolation is one of: 'sinc', 'lanczos' or 'blackman'.

resample : bool, default: :rc:`image.resample`
    When *True*, use a full resampling method.  When *False*, only
    resample when the output image is larger than the input image.

url : str, optional
    Set the url of the created `.AxesImage`. See `.Artist.set_url`.

Returns
-------
`~matplotlib.image.AxesImage`

Other Parameters
----------------
data : indexable object, optional
    If given, all parameters also accept a string ``s``, which is
    interpreted as ``data[s]`` if ``s`` is a key in ``data``.

**kwargs : `~matplotlib.artist.Artist` properties
    These parameters are passed on to the constructor of the
    `.AxesImage` artist.

See Also
--------
matshow : Plot a matrix or an array as an image.

Notes
-----

.. note::

    This is the :ref:`pyplot wrapper <pyplot_interface>` for `.axes.Axes.imshow`.

Unless *extent* is used, pixel centers will be located at integer
coordinates. In other words: the origin will coincide with the center
of pixel (0, 0).

There are two common representations for RGB images with an alpha
channel:

-   Straight (unassociated) alpha: R, G, and B channels represent the
    color of the pixel, disregarding its opacity.
-   Premultiplied (associated) alpha: R, G, and B channels represent
    the color of the pixel, adjusted for its opacity by multiplication.

`~matplotlib.pyplot.imshow` expects RGB images adopting the straight
(unassociated) alpha representation.
File:      ~/teaching/lab_course/scu_lab_course_ia_test/.pixi/envs/default/lib/python3.11/site-packages/matplotlib/pyplot.py
Type:      function

plt.figure()
plt.imshow(nuclei, cmap="gray")
plt.title("DAPI (nuclei)")

Text(0.5, 1.0, 'DAPI (nuclei)')

show() is a small helper defined in notebooks/course.py: it calls matplotlib’s imshow with a grayscale colormap and no axis ticks, so we do not repeat those arguments in every cell. It is worth a look; there is nothing magic in there.

As discussed earlier the colours on screen are a display choice, not a property of the data. The array holds one number per pixel. Matplotlib maps those numbers to colours using a colormap. Fiji calls this a lookup table (LUT). Changing it changes the picture, not the data.

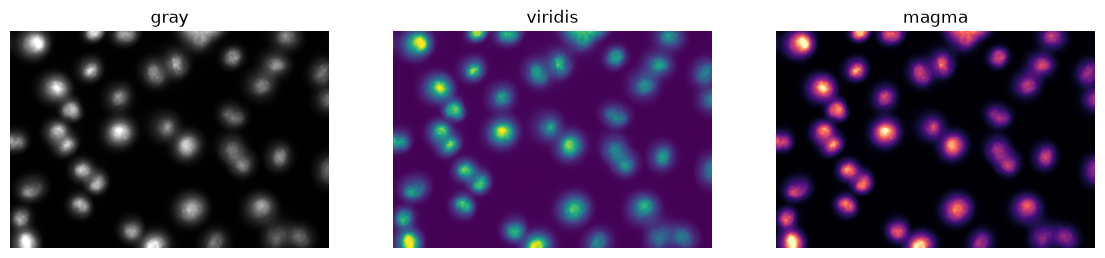

fig, axes = plt.subplots(1, 3, figsize=(14, 4)) # this is a way to create a figure with multiple axes (subplots) in one row and three columns
for i in [0, 1, 2]:
    cmap = ["gray", "viridis", "magma"][i]
    axes[i].imshow(nuclei, cmap=cmap)
    axes[i].set_title(cmap)
    axes[i].set_axis_off()

    # with our helper function, we could do the same as above in one line:
    # show(nuclei, title=cmap, ax=axes[i])

Using napari

Napari is a powerful interactive viewer for multidimensional images.

It is a separate application, but can be called from within a notebook.

import napari

# Let's create a viewer.
# After running this cell, a Napari window will pop up.
viewer = napari.Viewer()

# Let's add the nuclei image to the viewer

viewer.add_image(nuclei, name="nuclei", colormap="blue")

<Image layer 'nuclei' at 0x37a342050>

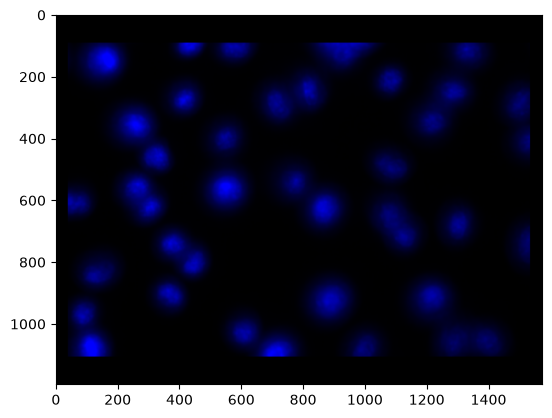

We can also take a screenshot of the Napari window and display it in the notebook.

rgb = viewer.screenshot()

plt.imshow(rgb)

<matplotlib.image.AxesImage at 0x37f23e550>

# When not needing the viewer anymore, we can close it.

viewer.close()

3. Cropping is just indexing

An image is indexed exactly like a nested list: image[rows, columns]. A colon means “all of them”, and start:stop selects a range.

# Rows 90 to 200, columns 180 to 330.
crop = nuclei[90:200, 180:330]
print("crop shape:", crop.shape)

show(crop, title="a crop")

crop shape: (110, 150)

<matplotlib.image.AxesImage at 0x13f196050>

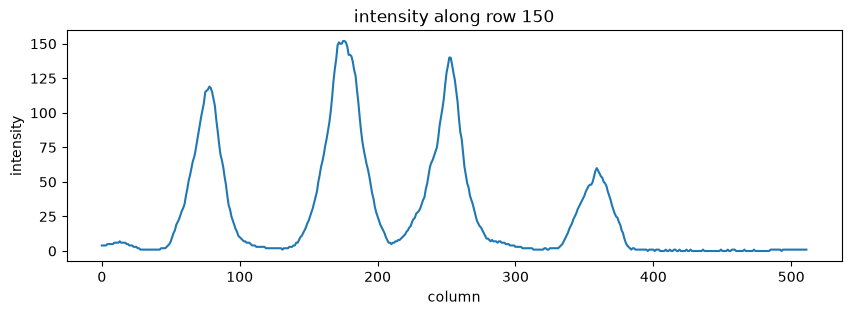

# A single row is a 1D array - similar to Fiji's line profile.
row = nuclei[150, :]
print("one row:", row.shape)

plt.figure(figsize=(10, 3))
plt.plot(row)
plt.xlabel("column")
plt.ylabel("intensity")
plt.title("intensity along row 150")
plt.show()

one row: (512,)

Every peak in that trace is a bright object the line crossed. This is the same plot Fiji draws for Analyze ▸ Plot Profile, and it is the reason the “how wide is a filament?” exercise works: measuring the peak’s width measures the object.

4. Multichannel images

Let’s load the two channels of the BBBC020 image. The DAPI channel is blue, and the CD11b channel is green.

nuclei = tifffile.imread(DATA / "bbbc020" / "images" / "2h_1_nuclei.tif")
cells = tifffile.imread(DATA / "bbbc020" / "images" / "2h_1_cells.tif")

fig, axes = plt.subplots(1, 2, figsize=(12, 4.5))
show(nuclei, title="DAPI - nuclei", ax=axes[0])
show(cells, title="CD11b - cell surface", ax=axes[1])
plt.show()

Visualizing composite images

Option 1: Build an array with three channels, which will be interpreted as RGB.

Each channel is a 2D array, and the composite is a 3D array. The channels will be interpreted as red, green and blue. This limits us to exactly these three channels, but it is the simplest way to make a composite with matplotlib.

composite = np.zeros((*nuclei.shape, 3), dtype=np.uint8) # create an empty array with the same height and width as the nuclei image, but with 3 channels for RGB
composite[..., 2] = nuclei   # blue channel  <- DAPI
composite[..., 1] = cells    # green channel <- CD11b

plt.figure(figsize=(7, 5))
plt.imshow(composite)
plt.axis("off")
plt.title("composite: DAPI (blue) + CD11b (green)")

Text(0.5, 1.0, 'composite: DAPI (blue) + CD11b (green)')

Option 2: Use a convenience function to make a composite with multiple channels.

from iaf.color import to_composite

# let's have a look at the function definition
to_composite?

Signature:
to_composite(
    images: list[numpy.ndarray],
    colors: list[typing.Union[iaf.color._color.Color, list, tuple]],
    clip_percentile: float = 0.1,
) -> numpy.ndarray
Docstring:
Create a composite image from a series of gray values images and the corresponding colors.

Parameters
----------

images: list[np.ndarray]
    List of gray-value images.

colors: list[Union[Color, list, tuple]]
    List of colors to be used to create a composite. One for each image. Each color is a `Color`, `list` or
    `tuple` with values for `(R, G, B)` between 0.0 and 1.0

clip_percentile: float
    Percentile to clip intensity in the low and high parts of the dynamic range.

Returns
-------

composite: np.ndarray
    RGB composite image
File:      ~/teaching/lab_course/scu_lab_course_ia_test/.pixi/envs/default/lib/python3.11/site-packages/iaf/color/_color.py
Type:      function

rgb = to_composite(
    [nuclei, cells],
    colors=[(0, 0, 1), (0, 1, 0)]) # blue and green expressed as RGB

plt.imshow(rgb)

<matplotlib.image.AxesImage at 0x13eee24d0>

Using napari

When choosing blending="additive" we can see multiple channels at once in Napari. This is the same as Fiji’s Image ▸ Color ▸ Merge Channels… with “Color” set to “Composite”.

viewer = napari.Viewer()

viewer.add_image(nuclei, name="nuclei", colormap="blue", blending="additive")
viewer.add_image(cells, name="cells", colormap="green", blending="additive")

<Image layer 'cells' at 0x33f80cb90>

viewer.close()

5. The histogram

fig, axes = plt.subplots(1, 2, figsize=(13, 3.5))
for ax, img, name in zip(axes, [nuclei, cells], ["DAPI", "CD11b"]):
    ax.hist(img.ravel(), bins=256, range=(0, 255), color="0.3")
    # ax.set_yscale("log")
    ax.set_title(f"{name} histogram")
    ax.set_xlabel("intensity")
plt.tight_layout()
plt.show()

The histogram counts how many pixels hold each intensity. Note the log scale on the y-axis: without it the background peak is so tall that everything else is invisible.

Both histograms have a large spike near zero: that is background, and most of the image is background. To the right of it sits a long tail of brighter pixels: the objects. Thresholding is the act of drawing a line between those two parts.

6. From intensity image to binary image: semantic segmentation

# A threshold produces a boolean array: True where the condition holds.
mask = nuclei > 60

print("mask dtype:", mask.dtype)

mask

array([[False, False, False, ..., False, False, False],
       [False, False, False, ..., False, False, False],
       [False, False, False, ..., False, False, False],
       ...,
       [False, False, False, ..., False, False, False],
       [False, False, False, ..., False, False, False],
       [False, False, False, ..., False, False, False]], shape=(348, 512))

# Visualizing the mask is straightforward

show(mask, title="nuclei > 60")
plt.show()

nuclei > 60 compares every pixel at once and returns an array of True/False : a mask. This is Fiji’s Image ▸ Adjust ▸ Threshold… with the slider at 60, and picking that number by hand is just as arbitrary here as it was there.

Otsu’s method picks the threshold automatically, by finding the value that best separates the histogram into two groups.

from skimage.filters import threshold_otsu

t = threshold_otsu(nuclei)
print("Otsu threshold:", t)

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
show(nuclei > 60, title="manual: > 60", ax=axes[0])
show(nuclei > t, title=f"Otsu: > {t}", ax=axes[1])
plt.show()

Otsu threshold: 61

7. From binary image to objects: connected component labeling

Or: Semantic segmentation (binary image) vs Instance segmentation (label image).

from skimage.measure import label

labels = label(nuclei > t)
print("objects found:", labels.max())

# A label image is NOT a binary image: pixel values are object numbers.
print("label image dtype:", labels.dtype, "| values 0 to", labels.max())

objects found: 34
label image dtype: int32 | values 0 to 34

# this function is a helper to visualize label images
from skimage.color import label2rgb

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

show(nuclei > t, title="semantic: nucleus or not", ax=axes[0])
# show(labels, title=f"instance: {labels.max()} distinct objects", ax=axes[1])
show(label2rgb(labels, bg_label=0), title=f"instance: {labels.max()} distinct objects", ax=axes[1])

<matplotlib.image.AxesImage at 0x37dca8150>

Limitation: Connected components cannot separate objects that touch.

In the next notebook we will see a second way of getting from a semantic segmentation to an instance segmentation, which can separate touching objects.

# napari opens a separate window with more tools - useful for anything 3D or
# multi-channel. Run this cell yourself; it is skipped when the website is built.
import napari

viewer = napari.Viewer()
viewer.add_image(nuclei, name="DAPI", colormap="blue", blending="additive")
viewer.add_image(cells, name="CD11b", colormap="green", blending="additive")

# notice that we add labels using "add_labels" and not "add_image":
# Napari knows that this is a label image and will treat it differently than a regular image.
viewer.add_labels(labels, name="nuclei labels")

<Labels layer 'nuclei labels' at 0x3439f5f10>

Different kinds of images

These names are used consistently across the bioimage analysis literature, and the differences between them matter for the rest of the course.

	what a pixel holds	answers	dtype
intensity image	a measured brightness	how much signal is here?	integer or float
binary image	one of two values	is this pixel foreground?	bool, or 0 and 255
label image	an object number	which object is this pixel in?	integer

Note: We can use a binary image to select pixels from another image, as in image[binary].

Recap

These steps correspond to operations from the Fiji practical:

Fiji	Python
open an image	tifffile.imread(...)
Image ▸ Type	image.dtype
rectangle + Image ▸ Crop	image[90:200, 180:330]
Analyze ▸ Plot Profile	plt.plot(image[150, :])
Merge Channels…	assign into an RGB array
Analyze ▸ Histogram	plt.hist(image.ravel(), bins=256)
Adjust ▸ Threshold…	image > t: a semantic segmentation
Analyze Particles…	label(mask): connected component labeling, an instance segmentation

Two ideas to carry forward, because everything from here builds on them:

• semantic segmentation labels pixels by class; instance segmentation labels them by object;

• connected component labeling turns the first into the second, and fails exactly when objects touch.

Next: 02_image_processing covers preprocessing and watershed segmentation for touching objects.
